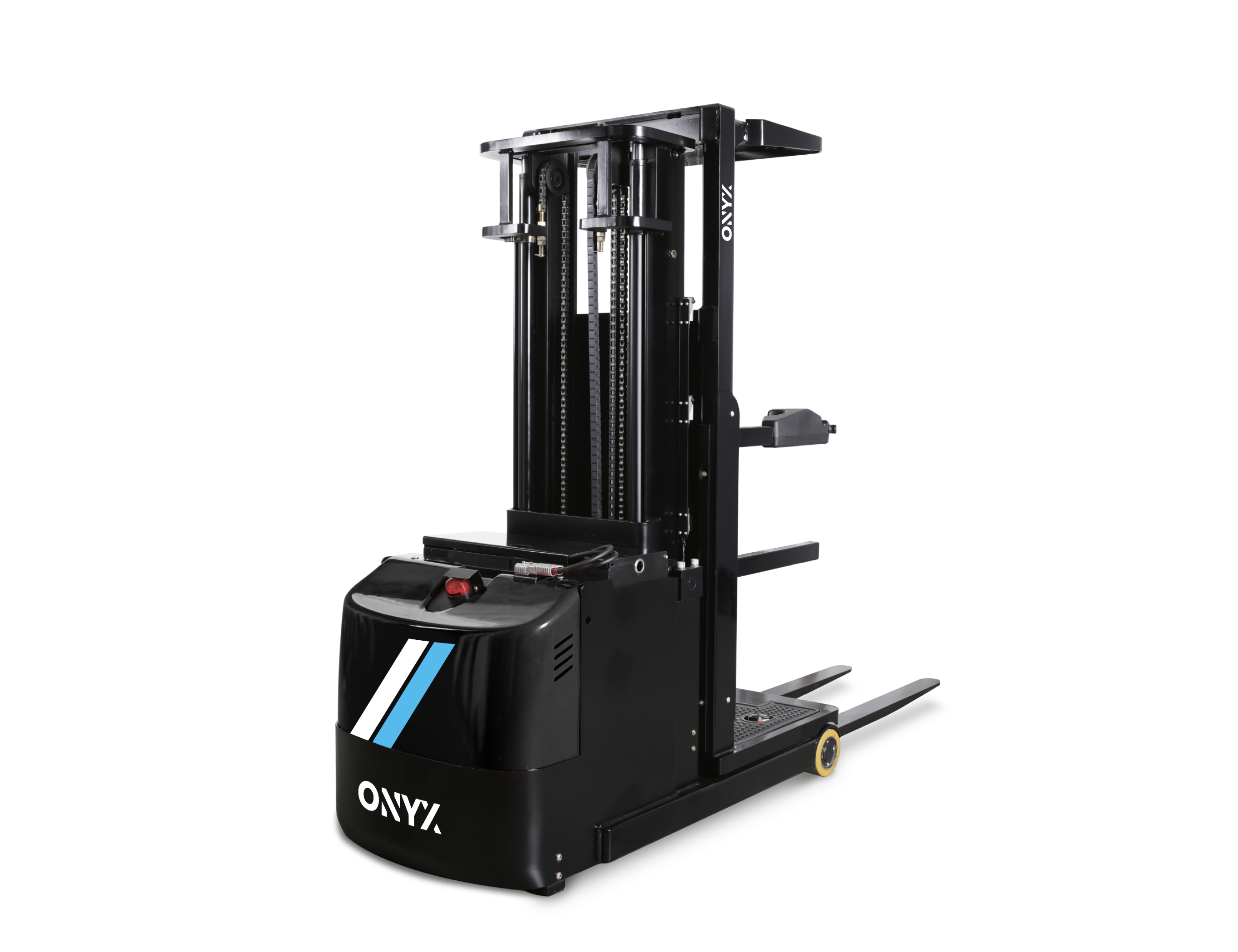

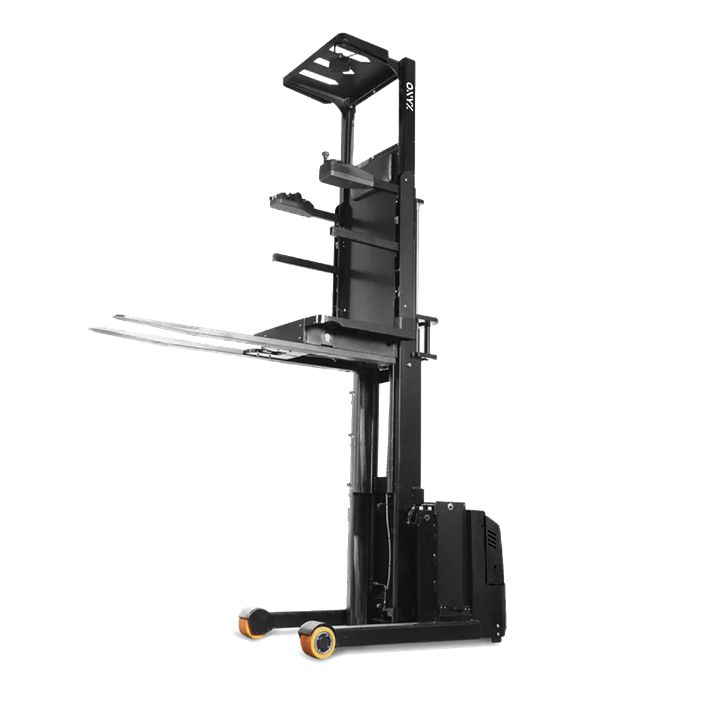

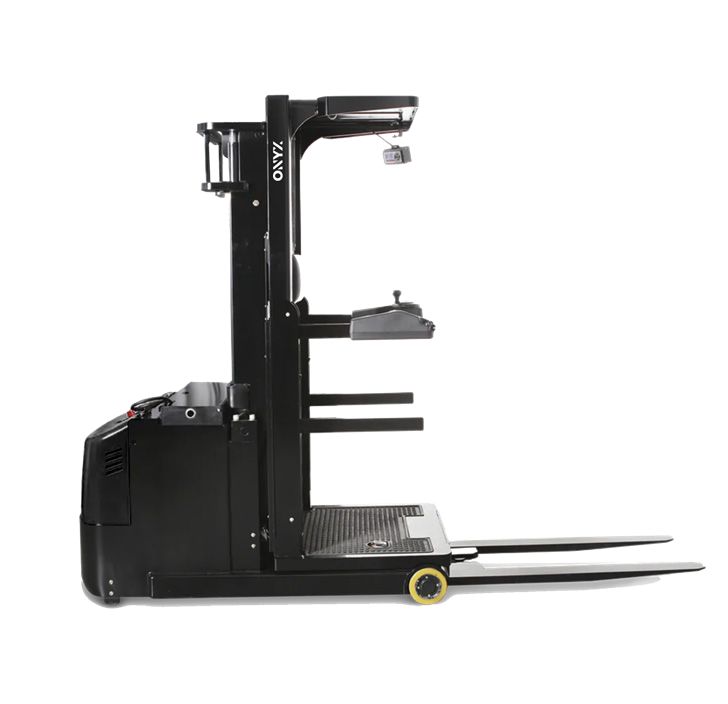

Order Picking Truck 1.0T
OP2-4
Features
Designed to match operator preferences
Designed to match operator preferences, offering a familiar and efficient user experience similar to high-lifting order pickers.
Versatile mid-level order picker
Versatile mid-level order picker, suitable for a range of warehouse applications.
Ideal for e-commerce fulfilment centres
Ideal for e-commerce fulfilment centres and medium-to-high-level distribution facilities.
Specifications
| Specification | Code | Unit | OP2-4 (3600) |
|---|---|---|---|
| Drive | Electric | ||
| Load capacity | Qy | kg | 1000/136 |
| Wheelbase | h6 | mm | 1365 |
| Service weight | h3 | kg | 1965 |
| Height of overhead guard | h4 | mm | 2270 |
| Lift height | l2 | mm | 3600 |
| Height, mast extended | b1/b2 | mm | 5975 |
| Overall length | h12 | mm | 2750 |
| Overall width | Wa | mm | 860 |
| Stand height, elevated | h12 | mm | 3815 |
| Turning radius | Wa | mm | 1600 |
| Travel speed, laden/unladen | km/h | 8/8 | |
| Lifting speed, laden/unladen | m/s | 0.13/0.16 | |
| Lowering speed, laden/unladen | m/s | 0.16/0.18 | |
| Max. gradeability, laden/unladen | % | 0 | |
| Drive motor rating S2 60 min | kW | 4 | |
| Battery voltage/nominal capacity | V/Ah | 24/360 |
Options
Key : • Standard • Optional
| No. | Optional Items | OP2-4 (4800) |
|---|---|---|
| 1.1 | Fork dimension |
• 1000*600 2A 100*40*1070 • 1000*600 2A 100*40*1200 |
| 2.1 | Load wheel type | • Single |
| 2.2 | Load wheel material | • Rubber |
| 2.3 | Drive wheel material | • PU |
| 2.7 | Battery capacity | • 360AH |
| 2.8 | Charger | • 24V-50A External |
| 2.9 | Battery indicator | • With time |
| 2.12 | Safe hook | • No |
| 2.13 | Traction pin | • No |
| 2.14 | Electrostatic chain | • No |
| 2.15 | Entry roller | • No |
| 3.3 | Castor wheels | • Yes and not customised |
| 3.4 | Water auto-filling system | • No |
| 3.7 | Warning lamp | • Rear warning lamp |
| 3.9 | Blue lamp | • No |
| 3.12 | Buzzer | • Descending buzzer |
| 3.18 | Guide wheel | • No |
| 3.19 | USB interface | • No |
| 4.1 | Battery side pull function | • Yes and not customised |
| 4.7 | Overhead guard | • Yes and not customised |
| 5.1 | Battery side pull attachment | • No |
